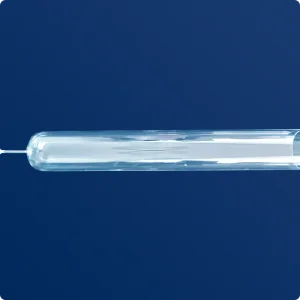

Wholesale Custom Quartz Furnace Tube for Laboratory & Industrial Use

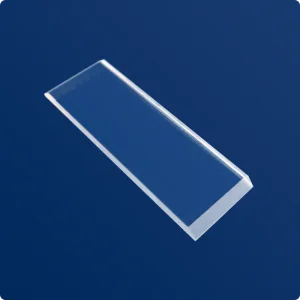

Wholesale High-Quality Fused Silica Quartz Plates Heat Resistant Solutions

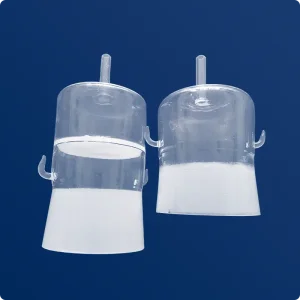

Custom Customized High-Purity Quartz Products for Scientific Applications

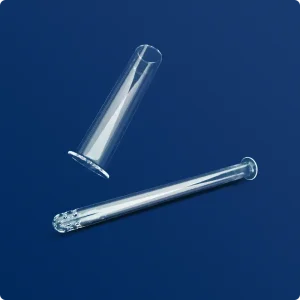

Wholesale High-Quality Heat Resistant Quartz Lamp Holders & Components
Wholesale Custom High-Purity Quartz Furnace Tube for Laboratory Use
Wholesale Suppliers of Fused Silica Quartz Plates High-Temp Glass
Wholesale Customized High-Purity Quartz Products for Laboratory Lines
High-Quality Customized High-Purity Quartz Products for Chemical Reactors
Laboratory lamp quartz heads, envelope collars, and plasma burner heads represent the most demanding thermodynamic nexus in analytical instrumentation. Subject to plasma arc temperatures above 10,000 K internally and cold carrier gas streams externally, raw material purity and structural annealing dictate operational longevity.
Alkali metals (Na, K, Li) trigger accelerated devitrification into cristobalite at temperatures exceeding 1000°C. Southeast Quartz refines quartz head bodies to under 15 ppm total elemental impurities, safeguarding thermal longevity in inductively coupled plasma (ICP) torches and deuterium lamp assemblies.
Custom quartz lamp heads require tailored OH concentrations. For deep ultraviolet (DUV 172nm excimer, 185nm ozone generation), high-OH synthetic quartz suppresses color-center formation (solarization). For NIR/IR laboratory emitters, ultra-low OH (<1 ppm) eliminates parasitic absorption bands at 2.2 µm and 2.73 µm.
With an exceptionally low coefficient of thermal expansion of 5.5 × 10⁻⁷ / °C between 20°C and 1000°C, custom lab lamp quartz heads endure instantaneous immersion cycles from furnace discharge into ice water without micro-cracking, preserving hermetic seals on molybdenum ribbon terminations.
| Quartz Material Property | Electrically Fused Quartz (Type I/II) | Gas Fused Quartz (Type III) | Synthetic Fused Silica (Type IV) | Significance for Lab Lamp Heads |
|---|---|---|---|---|
| Purity (SiO₂ Content) | 99.99% | 99.995% | > 99.9999% | Suppresses background noise in trace ICP-MS and analytical spectroscopy. |
| OH Content (ppm) | < 5 – 30 ppm | 150 – 450 ppm | < 1 ppm (Dry) / > 1200 ppm (Wet) | Dictates NIR optical transmission window vs DUV solarization resistance. |
| VUV Transmittance (@ 193 nm) | < 40% | 70% – 85% | > 90.5% (Internal) | Ensures maximal radiant flux for excimer curing and ozone photochemical lysis. |
| Dielectric Strength (@ 20°C) | 25 – 30 kV/mm | 25 – 30 kV/mm | 30 – 35 kV/mm | Prevents high-voltage RF breakdown in ICP torch ignition heads. |
| Max Continuous Temp | 1150 °C | 1100 °C | 1050 °C | Enables prolonged duty cycles in high-intensity discharge (HID) lab lamp envelopes. |
Standard borosilicate glass fails when confronted with intense radiation density, corrosive halogens, and steep thermal gradients. Custom quartz lamp heads serve as essential functional interfaces across 5 critical industrial and laboratory settings.
In Inductively Coupled Plasma Optical Emission Spectrometry (ICP-OES) and Mass Spectrometry (ICP-MS), the quartz head forms the demountable outer nozzle where argon plasma reaches 8,000–10,000 K. Southeast Quartz fabricates multi-layer concentric quartz burner heads with precision-ground taper joints (ball-and-socket or 18/9 joints) ensuring stable toroidal plasma containment with zero chemical leaching into sample matrices.
Organic synthesis, water photolysis, and advanced oxidation process (AOP) laboratories utilize immersion quartz lamp wells. Our dual-jacketed quartz heads facilitate circulating chilled coolant fluids while transmitting high-intensity 254 nm UVC or 365 nm UVA photons directly into reaction solutions. Our custom flanged heads withstand agitation vibrations and aggressive acid vapors without seal degradation.
Rapid Thermal Processing (RTP) and Epitaxy lines employ high-flux linear halogen lamps. Custom quartz heads protect tungsten filament envelopes and interface with water-cooled metallic reflector blocks. High geometric roundness and flame-polished finishes eliminate optical hotspots, preventing localized wafer slip-line dislocations during 1100°C millisecond spike anneals.
High-precision HPLC UV-Vis detectors rely on continuous deuterium (D2) arc discharge lamps. The custom quartz bulb head must feature a zero-bubble, optical-grade synthetic fused silica exit window welded to the fused quartz envelope. This geometry delivers maximum light throughput between 190 nm and 400 nm while isolating delicate cathode-anode assemblies from atmospheric oxidation.
172 nm xenon dielectric barrier discharge (DBD) excimer lamps break chemical bonds on glass and wafer surfaces without heat damage. Our custom quartz envelope heads incorporate proprietary ozone-free or synthetic quartz end-caps that resist deep UV solarization, maintaining consistent radical generation throughout thousand-hour industrial continuous runs.
Facing obsolete European or Japanese analytical instruments with non-existent spare parts? Southeast Quartz reverse-engineers legacy quartz heads from broken remnants, physical samples, or outdated hand-drawn schematics. We digitize geometries into 3D CAD/CAM models, refine wall-thickness uniformity, and reproduce replacement units with zero minimum order quantities.
High-end quartzware procurement has historically been trapped within closed OEM ecosystems. Research labs, semiconductor fabs, and testing houses face substantial markups and multi-month lead times for simple consumable quartz lamp heads.
Instrument manufacturers frequently classify custom quartz lamp envelopes, ICP torches, and photochemical reactor heads as captive consumables. These items carry gross profit margins in excess of 400%, despite being manufactured by tier-2 subcontractors. Sourcing teams in North America and Western Europe endure 12 to 16 week lead times, leaving analytical equipment idle during routine replacement cycles.
Furthermore, rigid OEM product catalogs rarely accommodate minor dimensional tweaks necessary when researchers modify reaction gas chemistry, change RF coupling coils, or adapt custom optical monitoring spectrometer probes.
Southeast Quartz provides a direct bridge between source manufacturing in China’s quartz heartland and global technical facilities. By eliminating multilayer distributor margins, facilities achieve a 40% to 65% reduction in total component acquisition costs without compromising dimensional accuracy or chemical purity.
Every custom batch is supported by comprehensive documentation: ICP-MS material impurity assays, optical spectrophotometer transmission curves (190 nm to 3200 nm), and individual helium leak detection certificates for vacuum-bearing lamp envelopes.
Located in Donghai County, Jiangsu Province—recognized worldwide as the primary hub of natural crystal refining and synthetic quartz synthesis—Southeast Quartz harnesses an integrated regional ecosystem to outpace traditional delivery schedules.
Immediate proximity to raw plasma-fused ingots, gas-refined quartz boules, and certified electronic-grade raw sand. We maintain zero raw-material stocking delays for custom cross-sections and oversized stock up to 450 mm OD.
Standardized workshops house high-precision glassblowing lathes alongside multi-axis CNC diamond grinding, drilling, and slotting equipment. Hot-working and cold-machining occur under one unified quality system.
Standard custom prototypes are evaluated, modeled, flame-worked, and annealed within 5 to 7 working days. Emergency replacement runs for critical semiconductor tool-down lines are prioritized with dedicated lathe slots.
Strategically positioned near major ports (Shanghai, Qingdao, and Lianyungang). All shipments are packed in multi-stage suspended foam crates with cleanroom vacuum barrier packaging to prevent transit shock or moisture ingress.
Analytical laboratory quartz heads operate at the confluence of volatile chemicals and electrical discharge. Southeast Quartz implements strict multi-stage verification protocols aligning with SEMI, ISO, and ASTM requirements.
For evacuated or pressurized lamp envelopes, hermeticity is absolute. We utilize Pfeiffer vacuum helium mass spectrometer leak detectors. Every sealed lamp head undergoes pressure sniffing with a pass threshold of < 1 × 10⁻⁹ mbar·L/s, preventing vacuum decay and atmospheric gas contamination.
Thermal glassblowing introduces localized hoop stress that can trigger spontaneous implosion under thermal cycling. All flame-worked quartz lamp heads pass through programmed electric annealing kilns (holding at 1150°C followed by controlled cooling) and are inspected under polarized light to verify stress-free birefringence.
Certified fully compliant with RoHS 3 (EU 2015/863) and REACH (EC 1907/2006) standards. Free of lead, mercury, cadmium, and hazardous plasticizers. Acid-etched in HF/HNO₃ purification baths within cleanroom workstations to eliminate surface handling residues prior to final cleanroom vacuum sealing.
As analytical limits push into sub-parts-per-trillion (ppt) detection and semiconductor lithography migrates deeper into Extreme UV (EUV), quartzware fabrication is experiencing rapid material and structural innovation.
Selective laser sintering of nanoscale high-purity SiO₂ powder allows internal fluidic cooling channels inside quartz lamp burner bodies that are impossible to machine via traditional glassblowing lathes, paving the way for ultra-compact ICP torch heads.
Doping synthetic quartz envelopes with fractional percentages of titanium and fluorine suppresses defect creation under intense 172 nm excimer and 193 nm ArF laser radiation, extending head lifespan in metrology tools by more than 300%.
Advancing graded intermediate glass frit transitions to seal tungsten, molybdenum, and Kovar electrical lead pins directly into custom quartz lamp envelopes, eliminating organic epoxy failure points and enabling 650°C continuous hermetic operation.
Everything procurement managers and technical researchers need to know when specifying custom lab lamp quartz heads, burner envelopes, and optical quartzware.
From oversized fused quartz reactors and plasma ingots to high-temperature transparent rings and precision lamp holders. Fully custom-machined to your exact process drawings.

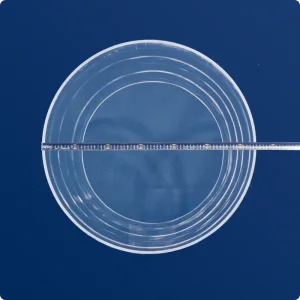

Custom Oversized Fused Quartz Tube for High Temp Applications

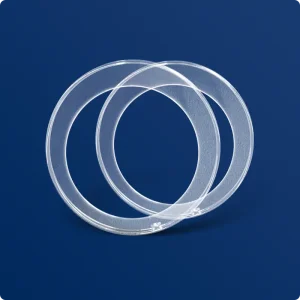

Wholesale Custom Transparent Quartz Glass Ring Insulation Component
