Factory-direct high-temperature fused silica plates, semiconductor wafer boats, high-purity glass insulation rings, and customized furnace reactor vessels calibrated for aggressive chemical and thermal environments.
As advanced manufacturing transitions to sub-3nm semiconductor nodes, N-type photovoltaic architectures, and high-energy excimer laser platforms, high-purity fused silica is the definitive engineering baseline.
Modern microchip fabrication depends completely on ultra-pure reaction chambers. Low-alkali quartzware prevents lattice poisoning from metallic cations during thermal oxidation, LPCVD, and annealing cycles above 1,100°C.
Mass-scale solar cell manufacturers rely on high-capacity quartz furnace tubes and carriers. Thermal shock resistance and extended mechanical life prevent catastrophic chamber collapse during intensive phosphorus or boron oxychloride diffusion.
Optical transparency across the deep-ultraviolet (DUV) through near-infrared (NIR) spectrum enables precision spectroscopy flow cells, laser ablation target windows, and highly inert reactor vessels for corrosive synthetic chemistry.
| Engineering Property | Electric-Fused Quartz (Type II) | Synthetic Fused Silica (Type III/IV) | Borosilicate Glass 3.3 | Testing Standard |
|---|---|---|---|---|
| Silicon Dioxide ($SiO_2$) Content | ≥ 99.99% (4N) | ≥ 99.9999% (6N) | ~81% ($B_2O_3$ 13%) | XRF / ICP-MS Analysis |
| Coefficient of Thermal Expansion (CTE) | $5.5 \times 10^{-7} / K$ | $5.2 \times 10^{-7} / K$ | $3.3 \times 10^{-6} / K$ | ASTM E228 (20°C–320°C) |
| Maximum Continuous Operating Temp | 1,100 °C | 1,180 °C | 450 °C | DIN 52324 Hot-Zone Test |
| Softening Point (Viscosity $10^{7.6}$ dPa·s) | 1,683 °C | 1,730 °C | 820 °C | ASTM C338 / ISO 7884-3 |
| Dielectric Strength (at 20°C, 1mm) | 25–40 kV/mm | 35–50 kV/mm | 15–20 kV/mm | IEC 60243-1 Breakdown Test |
| Hydroxyl ($OH^-$) Concentration | ≤ 15–30 ppm | ≤ 100–1,000 ppm (Grade Spec) | N/A (Multi-component) | FTIR Spectrometry ($2.73\,\mu\text{m}$) |
Located in Donghai County, Jiangsu—the undisputed global center for high-purity silica beneficiation—our manufacturing infrastructure combines automated thermal fusing with 5-axis CNC diamond grinding.
Our workshop utilizes computer-monitored hydrogen-oxygen glass lathes designed for precision fabrication of oversized reaction tubes, hemispherical bell jars, and complex vapor manifolds. By maintaining localized flame temperatures at approximately 2,000°C, our master glassmakers fuse multiple quartz joints without introducing air bubbles, micro-striations, or wall thinning.
Following welding, every component undergoes stress-relief annealing cycles inside programmable electrical lehrs. The annealing cycle raises temperatures to 1,150°C with controlled multi-hour cooling rates, completely resolving residual mechanical stress and preventing spontaneous micro-cracking when exposed to rapid thermal gradients in customer facilities.

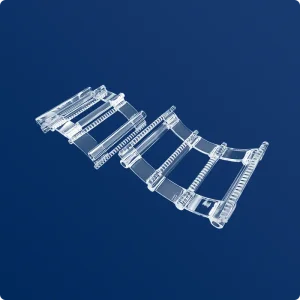

For high-precision applications like slotted semiconductor boats, optical windows, and insulation rings, mechanical integrity relies on diamond-tooled subtractive machining. We deploy specialized CNC machining centers utilizing high-frequency ultrasonic assistance, which reduces tool pressure by 40% and mitigates subsurface micro-fissuring.
Components can be supplied in fine ground, optically polished (surface roughness $Ra < 0.5\,\text{nm}$, scratch-dig 20-10), or chemical-etched states. Precision slotting on wafer carriers achieves pitch tolerances down to ±0.02mm, ensuring seamless robotic wafer transfer without binding, chipping, or micro-particulate generation.
How our engineered quartz solutions fulfill rigorous operational standards across North American, European, and Asia-Pacific industrial manufacturing frameworks.
Installed inside 200mm and 300mm front-end diffusion, wet bench etching, and LPCVD silicon nitride furnaces across premier semiconductor foundries.
Oversized quartz bell jars and protective shielding plates utilized in high-temperature Czochralski (CZ) silicon ingot growth pulling towers.
Custom multi-neck reaction stills, condensers, and microchannel fluidic devices operating in concentrated nitric, sulfuric, and hydrochloric synthesis.
High-transmittance ozone-free and ozone-generating quartz sleeves providing >90% transmission at 254nm and 185nm for municipal purification plants.
Serving Tier-1 global technology clients requires full procedural compliance. Southeast Quartz operations adhere strictly to ISO 9001:2015 quality management and ISO 14001:2015 environmental standards. All exported fused quartzware is fully certified compliant with RoHS 3 (EU 2015/863) and REACH (EC 1907/2006) directives, with certified absence of Conflict Minerals.
To guarantee zero particle contamination on delivery, finished products pass through ultrasonic acid de-greasing, multiple 18.2 MΩ·cm DI water flushes, and vacuum drying inside a Class 1,000 cleanroom. Parts are hermetically double-bagged under positive nitrogen purges and crated inside heavy-duty, shock-dampened export crates equipped with multi-axis tilt and impact indicators.
Anticipating emerging semiconductor architectures, deeper UV lithography regimes, and decarbonized high-temperature thermal manufacturing processes.
Development of second-generation plasma de-hydroxylation chambers to synthesize water-free fused quartz. This eliminates the vibrational $OH^-$ absorption peak at $2,730\,\text{nm}$, allowing ultra-broadband IR lasers and advanced fiber optic preforms to transmit without optical attenuation.
For photovoltaic cell manufacturing operating at sustained 1,250°C cycles, our material labs are piloting nano-scale aluminum and titanium dopant structures that raise the annealing point by 65°C, suppressing furnace tube sagging and doubling usable service intervals.
Pioneering stereolithography (SLA) printing of sub-micron colloidal silica slurries followed by furnace sintering. This enables previously impossible monolithic quartz geometries: conformal internal cooling passages for laser mirrors and tortuous microfluidic chemistry manifolds.
High-temperature industrial lamp holders, oversized chemical reaction process tubes, high-purity laboratory apparatus, and specialized high-vacuum viewports.
Essential answers to common mechanical, thermal, optical, and procurement questions encountered by sourcing teams and apparatus design engineers.
To provide a precise engineering review and binding quote within 24 hours, our engineering team requires: outer/inner diameter (OD/ID), wall thickness, overall length, linear and angular tolerances, end geometry (open, hemispherical dome, ISO/KF/ConFlat ground flange, or gas inlet weldment), purity grade (Type II fused quartz vs Type III synthetic silica), and continuous operating temperature/atmosphere. Production drawings in PDF, DWG, DXF, or STEP format are preferred.
High-purity transparent fused quartz supports continuous service up to 1,100°C and intermittent cycles up to 1,250°C. Above 1,150°C, any surface contamination (particularly alkali metal traces like fingerprint sodium or airborne potassium) catalyzes nucleation, converting metastable amorphous silica into crystalline β-cristobalite. Cristobalite exhibits a high-volume phase change upon cooling below 250°C, causing structural micro-crazing and catastrophic failure. Operating strictly in clean environments avoids this.
All hermetic and vacuum-rated quartzware (including furnace tubes with welded quartz flanges, bubblers, and distillation reactors) undergoes mandatory Helium Mass Spectrometry Leak Testing calibrated to detect leaks smaller than $1 \times 10^{-9}\,\text{mbar}\cdot\text{L/s}$. Pressure-bearing vessels are additionally proof-tested in hydrostatic tanks up to 150% of the operational pressure rating before final cleanroom de-contamination.
Yes. Our heavy-duty thermal processing division handles continuous fused quartz tubes with outer diameters up to Ø650mm and overall lengths reaching 4,500mm. Utilizing large-bed CNC diamond grinding apparatus, we routinely cut custom sight windows, polygon carriers, multi-bore capillary manifolds, and parabolic reflectors tailored precisely to client equipment prints.
Natural fused quartz (Type I and II) is produced by melting ultra-pure natural crystalline silica sand in electric or gas-oxygen arc furnaces. It features exceptional high-temperature viscosity and thermal stability with low hydroxyl ($OH^-$ < 30 ppm), ideal for semiconductor furnaces and lamp envelopes. Synthetic fused silica (Type III and IV) is synthesized from silicon tetrachloride ($SiCl_4$) precursors, offering extreme purity (6N+), zero metallic contaminants, and high DUV transmittance down to 193nm.
Fused quartz demonstrates near-total chemical inertness to virtually all organic solvents, halogens, and mineral acids (including $HNO_3$, $H_2SO_4$, and $HCl$) even at boiling temperatures. The primary chemical exceptions are Hydrofluoric Acid ($HF$), which rapidly dissolves silica forming $H_2SiF_6$, and concentrated Phosphoric Acid ($H_3PO_4$) at temperatures above 150°C. Strong basic alkaline solutions ($KOH$, $NaOH$) also etch quartz at elevated temperatures.
